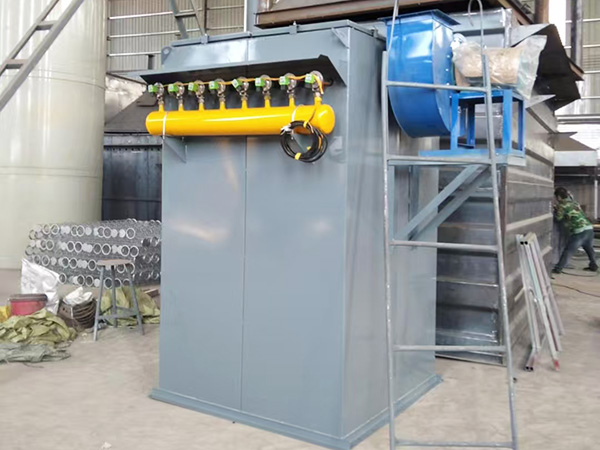

Small Baghouse Dust Collector

Small Baghouse Dust Collector is a mini type pulse jet bag filter,specially designed for small airflow and local dust removal.It features compact structure,small footprint,easy installation and high dust removal efficiency.It is widely used to collect dry industrial dust,powder and particulate matter,suitable for workshop point dust removal and small production lines.

Working Principle

Dust-laden air enters the dust collector chamber,and fine dust is intercepted and adsorbed on the surface of filter bags.Clean air passes through the filter bags and is discharged up to standard.When dust accumulates to a certain degree,the pulse jet system automatically sprays compressed air to shake off dust on the bag surface.The fallen dust sinks into the bottom ash hopper for regular cleaning and collection.

Main Features

Mini small size,occupy little space,easy to place indoors and outdoors.

High filtration efficiency,effectively capture fine dust,meet environmental emission standards.

Pulse automatic cleaning,no need to stop the machine,stable continuous operation.

Simple structure,low failure rate,convenient maintenance and low operating cost.

Equipped with high-quality polyester filter bags,wear-resistant and long service life.

Integral design with fan,easy to install and put into use quickly.

Application Scope

Woodworking dust,grinding dust,welding smoke,cement powder,stone cutting dust,food powder,chemical raw material dust,small factory workshop local dust removal and other occasions.

Technical Characteristics

Airflow:300–3000 m³/h

Cleaning method:Pulse jet automatic cleaning

Filter material:Polyester needle felt,optional high temperature and antistatic type

Structure:Integral type with fan,box type small baghouse

Advantage:Low noise,energy saving,easy movement and installation
