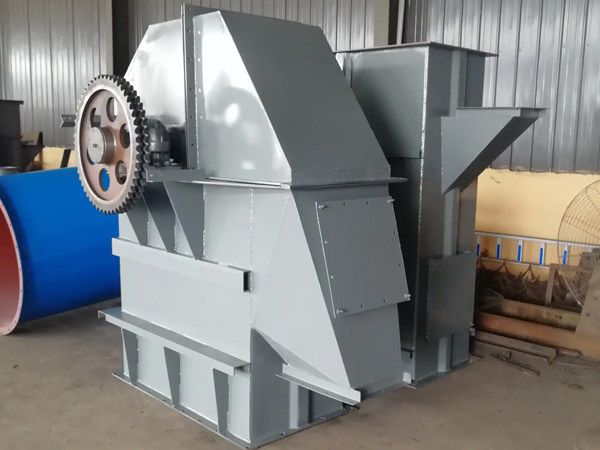

TH Bucket Elevator

TH Bucket Elevator is a heavy-duty,chain-driven vertical conveying machine designed for continuous lifting of bulk materials.As a ring-chain type bucket elevator,it serves as an industrial standard solution for vertical material handling in mining,construction,and manufacturing sectors.

Working Principle

Materials are fed into the elevator's base section,where they are scooped up by evenly spaced buckets attached to two parallel high-strength alloy steel round-link chains.Driven by a motor-reducer assembly,the chains circulate,carrying the buckets and materials upwards.Upon reaching the top sprocket,the buckets invert,discharging the contents via hybrid or gravity unloading into the outlet chute.The entire process is enclosed,preventing dust emissions.

Key Features

Robust Traction System:Utilizes heat-treated,forged alloy steel round-link chains(conforming to MT36-80 standard)offering exceptional tensile strength and wear resistance.

Durable Sprockets:Features composite-structured sprockets with replaceable rims,extending service life and simplifying maintenance.

Two Bucket Styles:

ZH(Medium-Deep):Ideal for wet,sticky,or cohesive materials(e.g.,wet sand,fertilizer,clay).

SH(Deep):Designed for dry,free-flowing materials(e.g.,coal,cement,gravel).

Automatic Tensioning:The lower section incorporates a gravity-based tensioning device to maintain optimal chain tension,preventing slack and derailment.

Safety&Reliability:Equipped with a backstop device to prevent reverse operation and material backflow during power outages.

Compact&Sealed:Enclosed casing minimizes dust pollution and saves floor space.

Technical Specifications

Capacity:15.77–210 m³/h

Lifting Height:4.5–40 m

Max Material Temperature:≤250°C

Max Feed Size:30–60 mm

Chain Speed:1.2–1.4 m/s

Main Models:TH160,TH200,TH315,TH400,TH500,TH630
