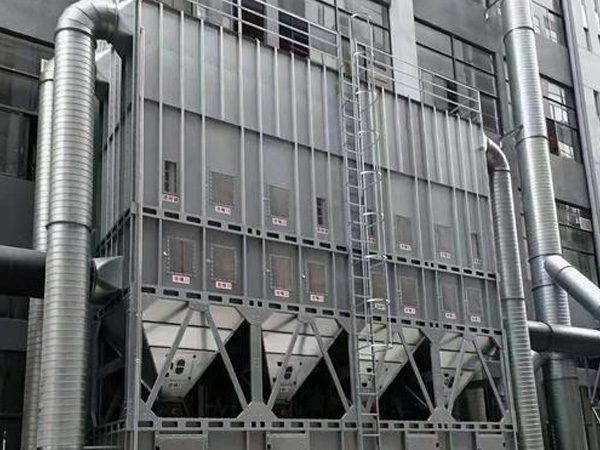

Industrial Woodworking Dust Extractor

The Industrial Woodworking Dust Extractor is a high-efficiency,heavy-duty air purification device specifically engineered for large-scale woodworking factories,production lines,and heavy-duty wood processing workshops.It is designed to capture,filter,and collect various wood dust,sawdust,wood shavings,and fine wood particles generated from industrial-grade woodworking operations such as panel cutting,heavy sanding,milling,routing,and carving,ensuring workshop air quality,protecting workers’respiratory health,and complying with industrial environmental protection emission standards.

Working Principle

Powered by a high-power centrifugal fan,the extractor generates strong negative pressure to form a stable suction airflow.Wood dust and debris from multiple woodworking machines are sucked into the equipment through a centralized duct system.Firstly,large wood chips and shavings are separated by gravity and settle into the sealed ash hopper at the bottom.Then,fine wood dust(down to 0.3μm)is efficiently filtered and intercepted by high-performance filter bags or filter cartridges.The purified clean air passes through the filter medium and is discharged up to standard through the exhaust port.For continuous stable operation,the extractor is equipped with an automatic pulse jet cleaning system,which periodically blows compressed air to remove dust attached to the filter surface,preventing clogging and maintaining consistent suction power.

Core Structure

-High-Power Centrifugal Fan:Provides strong negative pressure and large air volume,ensuring efficient dust suction even for long-distance ducting.

-Dust Collection Chamber:Sealed structure to prevent dust leakage,with a large-capacity ash hopper for easy dust dumping and centralized treatment.

-Filter System:Optional high-density filter bags(polyester,PTFE)or filter cartridges,with high filtration efficiency and wear resistance,suitable for long-term industrial use.

-Pulse Cleaning System:Automatic timing cleaning,no need for manual operation,reducing maintenance workload.

-Centralized Duct Interface:Multiple connectors available,supporting simultaneous dust extraction from 2-8 woodworking machines(customizable according to workshop layout).

-Safety Protection:Equipped with explosion-proof valve,spark arrester,and overheat protection,effectively avoiding fire and explosion risks caused by wood dust accumulation.

Key Features

-Industrial-Grade Performance:Large air volume(1000-10000 m³/h)and strong suction,suitable for heavy-duty woodworking scenarios and large-scale production lines.

-High Filtration Efficiency:Filters 90%of fine wood dust,meeting strict industrial environmental emission requirements.

-Safe&Reliable:Explosion-proof,spark-proof,and sealed design,adapting to the flammable and explosive characteristics of wood dust.

-Low Maintenance:Automatic cleaning system,replaceable filter elements,and easy-to-clean ash hopper,reducing daily maintenance costs.

-Flexible Adaptation:Customizable duct layout and interface quantity,compatible with various industrial woodworking machinery(panel saw,sanding machine,engraving machine,etc.).

-Durable&Stable:Heavy-duty steel body,corrosion-resistant and wear-resistant,suitable for long-term continuous operation in harsh industrial environments.

Applications

Widely used in industrial woodworking factories,large-scale furniture production lines,solid wood processing plants,cabinet and door/window manufacturing workshops,and plywood processing facilities.It is perfectly matched with industrial-grade panel saws,wide-belt sanding machines,edge banding machines,CNC engraving machines,milling machines,and other woodworking equipment,realizing centralized dust extraction and purification for the entire production line.
