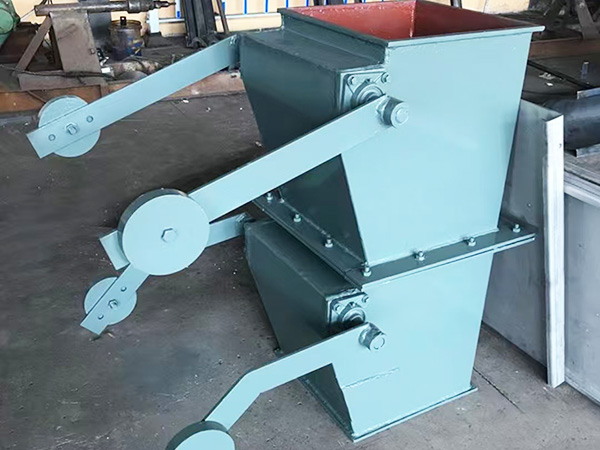

A Heavy Hammer Flap Valve,also known as a weighted flap valve or hammer check valve,is a specialized one-way isolation valve designed with an external heavy hammer to enhance sealing performance and ensure reliable backflow prevention.It is an upgraded version of the standard flap valve,integrating a hinged flap with a counterweight(heavy hammer)to achieve precise,rapid,and tight closure,making it ideal for high-pressure,large-diameter pipelines and harsh working conditions where standard flap valves may fail to seal effectively.

The working principle of the heavy hammer flap valve is based on the combination of medium pressure,flap weight,and the counterforce of the heavy hammer.When the medium flows forward,its pressure overcomes the combined force of the heavy hammer and the flap’s own weight,pushing the flap open to form a smooth flow channel with minimal resistance.When the medium stops flowing or reverses,the heavy hammer exerts a downward force,cooperating with the reverse medium pressure to drive the flap to close quickly and tightly against the valve seat.This design ensures faster closure than ordinary flap valves,effectively suppressing water hammer,reducing pipeline vibration,and preventing medium backflow that could damage pumps,pipelines,or equipment.

Key features of the heavy hammer flap valve include enhanced sealing reliability:the heavy hammer provides constant pressure to the flap,ensuring tight contact with the valve seat even under low reverse pressure,eliminating leakage risks.It has a robust structure,with the valve body made of ductile iron,carbon steel,or 304/316 stainless steel,and the flap made of wear-resistant stainless steel to resist corrosion and abrasion from harsh media.The heavy hammer is adjustable,allowing operators to calibrate the closing force according to on-site pressure and medium conditions,adapting to different working scenarios.

Technical specifications:Size ranges from DN100 to DN1200,pressure rating PN6-PN25,temperature range-20°C to 350°C.Connection types include flanged(complying with GB,DIN,ANSI standards),suitable for horizontal or vertical installation.It is compatible with various media,including water,sewage,sludge,pulp,oil,gas,and abrasive granular materials.

Widely applied in industrial and municipal fields,it is commonly used in wastewater treatment plants,power plant ash water systems,mining tailings pipelines,chemical/petrochemical plants,and large-scale water supply and drainage projects.Its reliable performance,adjustable heavy hammer design,and low maintenance cost make it a preferred choice for large-diameter,high-pressure pipelines requiring stable backflow prevention,especially in unattended or remote operation scenarios.
