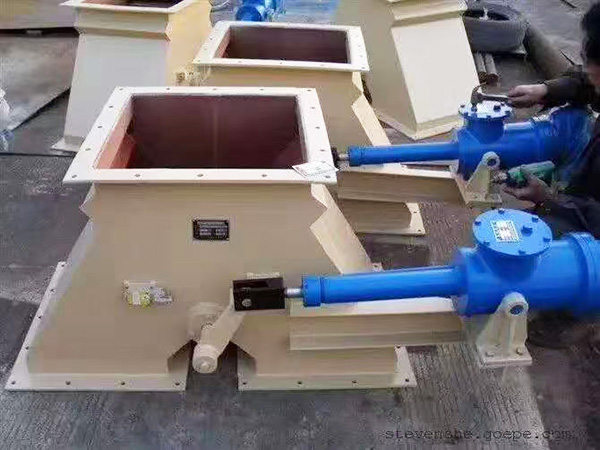

The Gravity Vee Diverter is a specialized flow control device designed exclusively for gravity-driven bulk material handling systems,engineered to redirect dry solids,powders,granules,or pellets from a single inlet to two separate outlets with high efficiency and minimal material loss.Its unique"V-shaped"internal diverter mechanism distinguishes it from standard flap diverters,ensuring smooth,clog-free flow redirection without relying on external power sources,making it an energy-saving and cost-effective solution for industrial applications.

Operating solely on the force of gravity,this diverter features a pivoting V-shaped blade(vee blade)installed at the junction of the inlet and two outlets.When materials fall freely into the valve body under gravity,the vee blade rotates to guide the flow toward one outlet while sealing the other,preventing cross-contamination and ensuring precise flow distribution.The V-shaped design minimizes material buildup,as its streamlined surface allows materials to slide smoothly without getting trapped—critical for handling cohesive or slightly abrasive bulk media.

Constructed for durability and adaptability,the Gravity Vee Diverter is available in a range of materials to suit different application needs.Common body materials include carbon steel for general industrial use,stainless steel(304/316)for hygiene-critical industries(food,pharmaceutical,chemical),and wear-resistant alloys or hardox liners for abrasive materials like coal,mineral powder,or cement.The valve body is designed with a robust,compact structure that fits seamlessly under hoppers,silos,chutes,or gravity flow pipelines,requiring minimal installation space.

Key features of the Gravity Vee Diverter include reliable sealing performance,simple operation,and low maintenance requirements.The vee blade is equipped with high-quality seals to prevent material leakage between outlets,ensuring clean and efficient operation.Actuation options include manual(handwheel or lever)for small-scale operations,and pneumatic or electric for automated systems—with position sensors and limit switches available to monitor blade position and enable remote control,integrating easily with automated production lines.

Technical specifications are customizable based on application demands,with size ranges from DN100 to DN500,operating temperatures from-10℃to 200℃,and compatibility with low-pressure gravity flow systems(up to 0.1 bar).Connection types include flange or bolted,ensuring easy integration with existing bulk material handling equipment.

Widely used in mining,cement,food processing,chemical,pharmaceutical,and power industries,the Gravity Vee Diverter plays a crucial role in optimizing material flow,reducing downtime,and improving production efficiency.It is particularly suitable for applications such as redirecting grain in food silos,cement powder in construction plants,mineral pellets in mining operations,and chemical powders in processing facilities—delivering consistent,reliable performance in gravity-driven bulk material systems.
