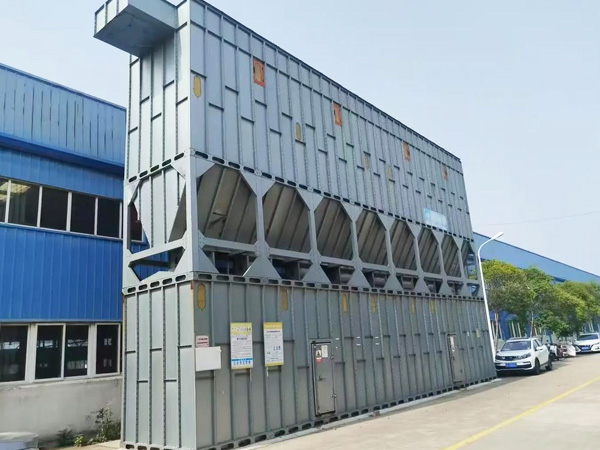

The Central Dust Collection System is an integrated,large-scale air purification solution designed for industrial workshops and production lines.It centralized captures,filters,and treats dust,fumes,and particulate matter generated by multiple equipment or workstations simultaneously,achieving unified dust control,standard emission,and a clean,safe production environment.Widely applied in various industries such as woodworking,metal processing,chemical,pharmaceutical,and food processing,it is the core equipment for industrial environmental protection and occupational health protection.

Working Principle

The system operates based on negative pressure suction technology.A high-power main fan(centrifugal or roots fan)generates stable negative pressure in the entire duct network.Dust and pollutants from each production workstation(e.g.,woodworking machines,grinding equipment,mixing machines)are sucked into the centralized duct system through branch pipes.The mixed airflow enters the main dust collector,where large particles are separated by gravity and settled into the ash storage device.Fine dust is intercepted and filtered by high-efficiency filter elements(filter bags,filter cartridges,or electrostatic precipitators).The purified air is discharged up to standard through the fan,while the collected dust is centralized stored or treated to avoid secondary pollution.

System Composition

-Main Fan:The power core of the system,providing sufficient negative pressure and air volume to ensure dust suction effect for long-distance and multi-point ducting.

-Central Dust Collector:The core filtration unit,available in bag-type,cartridge-type,or electrostatic type,with high filtration efficiency for fine dust(down to 0.1μm).

-Duct Network:Including main pipes,branch pipes,and connectors,designed to distribute airflow evenly,minimize resistance,and avoid dust accumulation.

-Suction Hoods/Nozzles:Installed at each dust-generating point,ensuring full coverage of dust sources and efficient suction.

-Ash Handling System:Including ash hoppers,screw conveyors,or ash discharge valves,realizing automatic or manual centralized dust collection and treatment.

-Control System:PLC automatic control,equipped with pressure detection,filter cleaning reminder,and fault alarm,enabling intelligent operation and remote monitoring.

-Safety Devices:Explosion-proof valves,spark arresters,and overheat protection,adapting to flammable,explosive,or corrosive dust scenarios.

Key Features

-Centralized Control:Manages dust from multiple workstations with one system,reducing equipment investment and maintenance workload compared to individual dust collectors.

-High Purification Efficiency:Advanced filtration technology,removing 90%of fine dust and particulate matter,meeting strict industrial emission standards.

-Large-Scale Adaptability:Customizable duct layout and system capacity,suitable for small workshops to large-scale production lines(air volume:5000-100000 m³/h).

-Intelligent&Convenient:Automatic filter cleaning,remote monitoring,and fault alarm,reducing manual operation and improving operational efficiency.

-Environmentally Friendly:Centralized dust collection and treatment,avoiding secondary pollution,and complying with global environmental protection regulations.

-Durable&Stable:Heavy-duty structure,corrosion-resistant and wear-resistant materials,suitable for long-term continuous operation in harsh industrial environments.

Application Fields

-Woodworking Industry:Furniture factories,wood processing lines,capturing sawdust,wood shavings,and fine wood dust from panel saws,sanding machines,etc.

-Metal Processing:Grinding,polishing,and cutting workshops,collecting metal dust(steel,aluminum,copper)to protect equipment and workers.

-Chemical Industry:Powder mixing,conveying,and packaging processes,handling chemical dust and avoiding dust explosion risks.

-Pharmaceutical&Food Industry:Purifying medicinal powder,food particles,ensuring product hygiene and workshop cleanliness.

-Other Industries:Cement,mining,electronics,and waste treatment,suitable for various industrial dust control scenarios.
