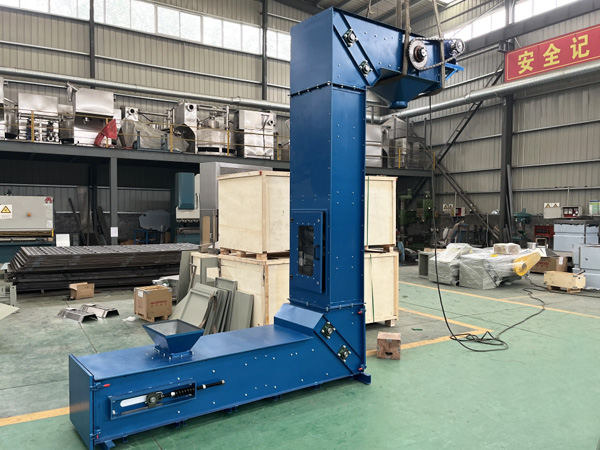

Vertical Bucket Elevator

A Vertical Bucket Elevator is a highly efficient,continuous conveying machine designed exclusively for vertical lifting of powdery,granular,and small-lump bulk materials.It is the most common type of bucket elevator,characterized by a straightforward vertical path,compact footprint,and enclosed operation.

Working Principle

The elevator operates on a closed-loop cycle driven by a motor-reducer unit:

Loading:Material is fed into the base,where rotating buckets scoop it up.

Lifting:Buckets,fixed to a belt or chain,move vertically along a straight path.

Unloading:At the top,buckets invert.Materials are discharged by centrifugal force(for free-flowing materials)or a mix of centrifugal force and gravity(for sluggish materials)into the discharge chute.

Return:Empty buckets loop back down to the bottom for reloading.

Main Types(by Traction Mechanism)

Belt Type(e.g.,TD Series)

Uses a heavy-duty rubber belt.

Advantages:Smooth,quiet,cost-effective,low maintenance.

Ideal for:Light to medium loads,non-abrasive materials(grain,cement).

Chain Type(e.g.,TH/HL Series)

Uses high-strength round link or plate chains.

Advantages:High tensile strength,heat-resistant,durable for heavy loads.

Ideal for:Abrasive,hot,or heavy materials(ore,coal,hot clinker).

Z-Type Bucket Elevator

Special vertical design with inclined infeed/outfeed.

Advantages:Gentle handling,prevents fragile materials from breaking.

Ideal for:Food,snacks,pharmaceuticals,and delicate granules.

Key Features&Advantages

Space-Saving Design:Vertical orientation minimizes floor space compared to inclined conveyors.

High Lifting Capacity:Can reach heights up to 40 meters and capacities exceeding 200 m³/h.

Environmentally Friendly:Fully enclosed casing prevents dust pollution and material contamination.

Low Energy Consumption:Efficient design draws less power compared to other conveyors.

Versatile Material Handling:Accommodates a wide range of dry,bulk materials.

Reliable&Safe:Equipped with backstops to prevent reverse rolling and safety guards.
