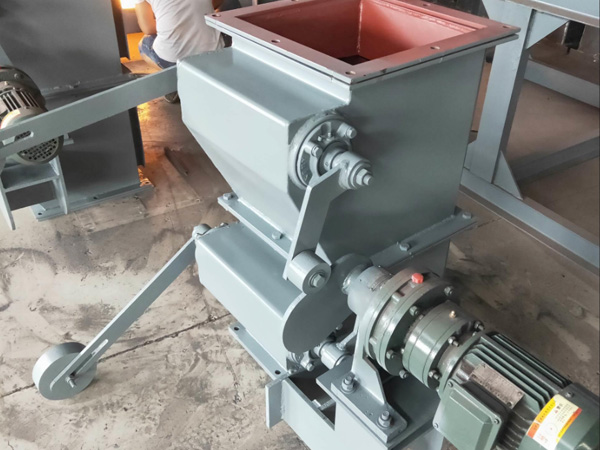

Electric Flap Valve

An electric flap valve(also called an electric flapper valve or electric gravity flap valve)is an automated flow control device that uses an electric actuator to open/close a hinged flap inside a pipeline or chute.It is designed for one‑way flow and backflow prevention,widely used in powder,granular material,dust,and gas handling systems.

1.Structure

Valve Body:Carbon steel/stainless steel,square/round flanged housing.

Flap/Door:Hinged,gravity‑assisted or motor‑driven plate with sealing gasket.

Electric Actuator:Motor,gearbox,limit switches;provides 90°rotary or linear motion.

Sealing:Rubber or PTFE for dust‑tight/air‑tight closure.

Controls:On/off,remote PLC,or 4–20 mA modulating signal;manual override for power failure.

2.Working Principle

Open:The electric actuator rotates the flap downward(or upward)to allow material/gas to pass through by gravity or pressure.

Close:When stopping or reversing flow,the actuator drives the flap to seal against the seat,preventing backflow,air ingress,or dust leakage.

Gravity‑assisted:In some designs,the flap relies on gravity to open when material flows,with the motor only for positive closure.

3.Key Features

Automation:Electric control enables remote operation and integration with industrial automation systems.

Zero Leakage:Reliable sealing prevents dust escape and air infiltration,ideal for dust collectors and pneumatic conveying.

Fast Response:Opens/closes in 1–3 seconds,suitable for frequent cycling.

Compact&Simple:Lightweight,small footprint,easy installation and maintenance.

Durable:Hardened flap and wear‑resistant seals for abrasive materials(cement,fly ash,grain).

4.Typical Applications

Dust Collection:Under hoppers,cyclones,and baghouse outlets.

Cement&Mining:Silo discharge,raw meal,clinker,and fly ash handling.

Power Plants:Ash removal and flue gas isolation.

Food&Chemicals:Grain,plastic pellets,and powder discharge lines.

Wastewater:Sewer outfalls and stormwater systems(preventing tidal backflow).

5.Technical Specifications(Common)

Nominal Size:DN100–DN800(square 100×100 mm to 800×800 mm).

Pressure Rating:±5000 Pa(low pressure).

Temperature:≤120°C(standard);up to 250°C(high‑temp version).

Actuator Voltage:220V AC/380V AC/24V DC.

Control:On/off,modulating,or smart with position feedback.

Summary

The electric flap valve is a cost‑effective,reliable solution for automated one‑way flow control and backflow prevention in bulk material and dust handling systems.Its simple structure,tight sealing,and easy automation make it a preferred choice for cement,power,mining,and environmental protection industries.
