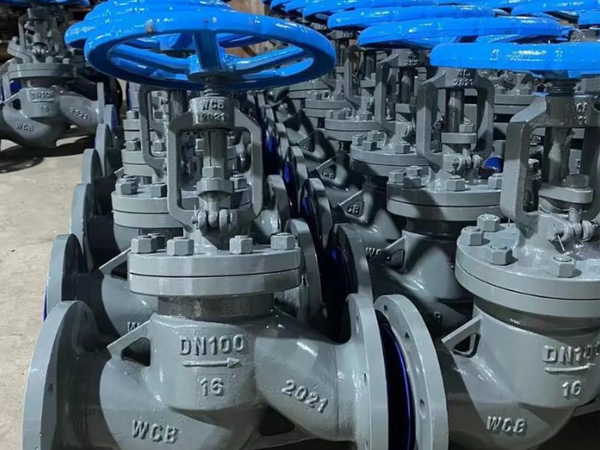

Stop Check Valve

A stop check valve is a dual-function fluid control valve that combines the functions of a stop valve and a check valve,widely used in industrial,municipal,and power generation pipeline systems.It is designed to both control the on-off of fluid flow actively and prevent reverse flow passively,ensuring the safety and stability of pipeline operations,especially in scenarios where medium backflow may cause equipment damage or system failure.

The core structure of a stop check valve consists of a sturdy valve body,a valve disc,a stem,a sealing seat,and an operating mechanism(manual,electric,or pneumatic).The valve body is typically made of cast iron,cast steel,stainless steel,or alloy steel,ensuring excellent structural rigidity,corrosion resistance,and pressure-bearing capacity to adapt to high-temperature,high-pressure,and corrosive medium conditions.The valve disc and sealing seat are precision machined,with the seat usually made of metal or composite materials to achieve reliable sealing and wear resistance.

The dual working principle is the key feature of this valve.In the active control mode,the valve disc is operated by the stem(driven by manual handwheel,electric actuator,or pneumatic actuator)to open or close the flow channel,realizing active control of fluid flow—similar to a stop valve.In the passive check mode,when fluid flows in the forward direction,the pressure pushes the valve disc open to allow normal circulation;when fluid tends to flow backward,the reverse pressure and the valve disc’s own weight(or spring force)push the disc tightly against the sealing seat,closing the valve and preventing backflow—similar to a check valve.

This valve is suitable for various pipeline connection modes,including flanged and threaded connections,and is applicable to nominal diameters ranging from DN15 to DN600,with pressure ratings from PN10 to PN100 and temperature resistance up to 550℃,adapting to diverse working conditions such as water supply and drainage,petrochemical,power generation,and steam systems.Installation requires attention to the direction of fluid flow(consistent with the arrow mark on the valve body)to ensure the check function works normally.Daily maintenance mainly involves inspecting the sealing performance,lubricating the stem,and cleaning the valve disc and seat to avoid blockage or leakage.

In summary,the stop check valve integrates the dual advantages of stop valves and check valves,featuring reliable performance,compact structure,and wide applicability.It effectively simplifies pipeline layout by replacing two separate valves,reduces installation and maintenance costs,and is an essential safety component for modern pipeline systems,protecting equipment and ensuring efficient and safe fluid transmission.
